2 Cavity Bottle Making Machine , Plastic Bottle Manufacturing Equipment

Name: 2 Cavity Bottle Making Machine Plastic Bottle Manufacturing Equipment
Brand: Reliable
Price: 1 USD

Cheap 2 Cavity Bottle Making Machine , Plastic Bottle Manufacturing Equipment for sale

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Reliable

Certification : CE ISO SGS

Supply Ability : 30 Set/Sets per Month bottle making machine

Packaging Details : With PE Film Wrapped Standard Container According To Requirement

MOQ : 1 - 1 Sets

Price : Negotiable

Model Number : RM-2

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 25-35 working dys

Voltage : 380V 50Hz

Power : 28KW

Weight : 2800KG

Material : SUS304/316

Capacity : 2000-2500 bph

Function : Bottle Blowing Machine

Contact Now

2 Cavity Automatic Plastic Beverage Bottle Making Machine With Low Power

Product Description

1).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.

2).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.

3).High Speed:2000BPH

4).No Contamination:Closed production zone, good self-lubrication system avoid contamination.

5).Low Cost:Low consumption of electricity, air and water.

6).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.

Paramater

Type	RM-2000 Plastic Bottle Making Machine
	According to bottle type	2000PCS/H
Product specification		20mm-100mm
	Bottle height	50mm-350mm
	Bottle mouth diameter	15mm-38mm
Mold	Cavitites	2cavities
Mold	Cavity pitch	120mm
Main power	Power	380v 3Phase/220v 3Phase 50/60HZ
Main power	Total power/heating power	30kw/10kw
Main machine size	Length width height/weigtht	195017502200mm/2800kg

Optional items of PET bottle blowing machine :

1. Exploded bottles ejection unit

During the blowing process, if the bottle burst, it can be automatically removed. This prevents the bad bottles into the filling machine.

2. HP air recovery system

After the bottle blowing accomplished, high-pressure air can be recycled can be used again for the pre-blowing and operational movement.

3. Oven and preform temperature detection system

Real-time detect the temperature of the oven and the temperature of the preform after

heating before blowing. When the preform heating temperature does not reach the set blowing temperature blowing workstation will alarm, not blown.

Brand List

Electrical components		Cylinders
PLC	Taiwan Delta	clamping cylinder	Japan SMC
touch screen	Taiwan Delta	stretching cylinder	Japan SMC
relay	France Schneider	preform-feeding flipping cylinder	Germany FESTO
circuit breaker	France Schneider	bottle-takeout flipping cylinder	Germany FESTO
air switch	France Schneider	first-stage, second-stage slide cylinder	Japan SMC
power supply	France Schneider	heating cylinder	Japan SMC
proximity switch	France Schneider	Preform-separating cylinder	Japan SMC
photoelectric switch	France Schneider	Manipulator cylinder	Japan SMC

Option Introduction

Blowing system

Short mould stroke, quick action.
Wide adaptability, suitable for every type mould thickness.
Special design, high rigid compound die structure.
High responsiveness pneumatic components, action timely and precisely.
Small size, low investment. One person enough to operate, simple and safe.

Preform Injection

Through safe operation mechanism, start-up with two hands, avoid the accident during the operation.
Adopt the theory of heat transfer and feedback while designing the shape and thickness of preform.
Automatic feeding and automatic dropping the bottles.
Small size and compact construction with no space waste.

Heating Parts

Adopt special electronic controlling circuit for heating, high efficiency in simultaneous controlling.
One lamp or more, lower power consumption.
The preform will be heated evenly, not be influenced by outside environment.
Cooling system with cold air cycle ensures same heat exposure of internal and external surface.

Drive technology.

Five highly precise Monotec servo motors
With real time synchronization
Installed on a torsion-resistant platform structure

Product Tags:

pet bottle making machine

water bottle manufacturing machine

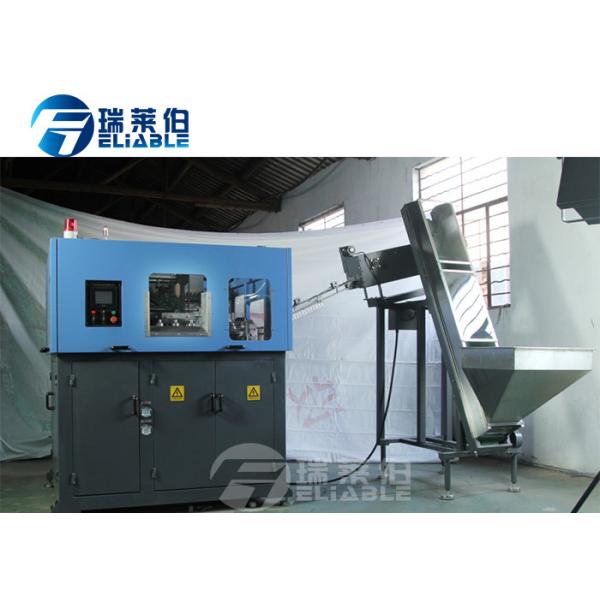

2 Cavity Bottle Making Machine , Plastic Bottle Manufacturing Equipment Images
